NAW-TEN™
The technology employed in the development of this steel received the Ichimura Industrial Contribution Award in 1999.
Features
Superior weather-resistance in environments other than those covered under the JIS standards for weather-resistance.
Two types of nickel-added high-performance weathering steel are available to suit various environments and performance requirements.

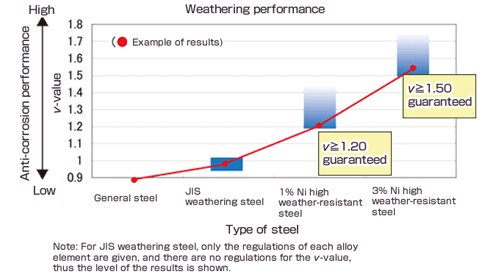

- Weather Resistance

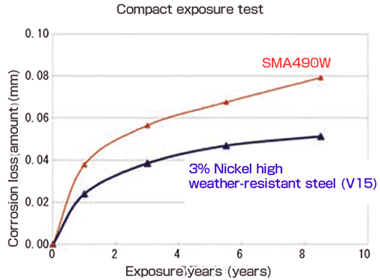

- Small-scale exposure testing
Current guidance for application of JIS weathering steel to road bridges in Japan
(Ministry of Construction Public Works Research Institute, Steel Club, Japan Bridge construction Association)
- 1Airborne salts ≦ 0.05mdd (mg/dm2/day)

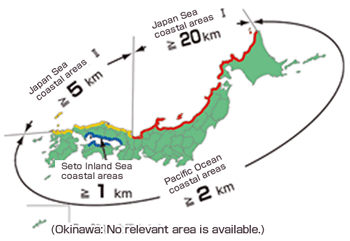

- 2Measurement of airborne salts in the following regions may be omitted.
All other than the chemical constituents are covered by JIS weathering steel.
- As with JIS weathering steel, a range is available for tensile strengths of 40 - 60 kilos.
- As with JIS weathering steel, mechanical properties are guaranteed.
- Steel plate sizes are similar to those for JIS weathering steel.
Comprehensive provision of utilization technology
- We will provide comprehensive utilization technology for fabrication, and we develop high-strength bolts and special nickel-added welding materials for high-performance weathering steel.
Provision of technology for utilization of weathering steel
Applications for weathering steel require greater safety and security in minimum maintenance levels, and technology for a total solution.
- 1In addition to the conventional windborne salts, the effects of temperature, humidity, and sulfates are considered in forecasting corrosion and wear of steel plate.*
- 2The amount of corrosion in the first year is measured, and the corrosion environment is quantified using "Wappen test pieces."
- 3Development to control initial streaming rust along with surface treatments (supplementary additives to stabilize rust)
- 4Development of surface treatments with consideration for the landscape (colored)
- 5As diagnostic equipment for management and maintenance, the RST (Rust State Tester) has been developed for rapid and simple measurement of the environmental protection functions of rust films and applied membranes.
- * Awarded the 2005 Japan Society of Civil Engineers Tanaka Award (technical papers section)
Examples of use

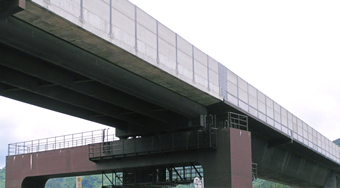

Hokuriku Shinkansen, Hokuriku Highway Overbridge (tentative title)
- Client:
Japan Railway Construction Public Corporation (currently, the Rail and Transport Organization)
- Location:
Niigata Prefecture, Japan Bridge format: Concrete and steel pipe beams (4 primary), and piers
- Weather-resistant grade for steel:
V15 Surface specification: Treated with rust stabilizer additive
