Fe/SUS
Features
- This clad steel has better IH heating efficiency than stainless steel.
- This clad steel has better thermal conductivity than stainless steel.
| Name | Thickness (mm) | 2kW test | 3kW test | Thermal conductivity (W/m·℃) | Specific heat (J/kg·℃) | Specific gravity | ||
|---|---|---|---|---|---|---|---|---|
| Measured value (kW) | Power conversion efficiency at IH heating (%) | Measured value (kW) | Power conversion efficiency at IH heating (%) | |||||
| stainless steel single layer pot | 0.6 | 1.7 | 85 | 1.7 | 57 | 26 | 460 | 7.7 |
| 304L/SPCE/304L Clad pot | 0.8 | 2.0 | 100 | 3.0 | 100 | 43 | 480 | 7.9 |

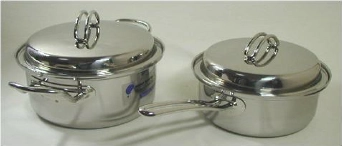

Examples of use
Chemical Composition (mass%)
| C | Si | Mn | P | S | Cr | Ni | Cu | |
|---|---|---|---|---|---|---|---|---|
| SUS304L | ≦0.030 | ≦1.00 | ≦2.00 | ≦0.045 | ≦0.030 | 18.00 - 20.00 | 9.00 - 13.00 | - |
| SPCE | ≦0.050 | ≦0.30 | 0.20 - 0.45 | ≦0.030 | ≦0.010 | ≦0.10 | - | ≦0.50 |
Mechanical Properties
| 0.2%-P.S. / MPa | T.S. / MPa | El. / % | |
|---|---|---|---|
| 304L / SPCE / 304L | ≧175 | ≧350 | ≧25 |

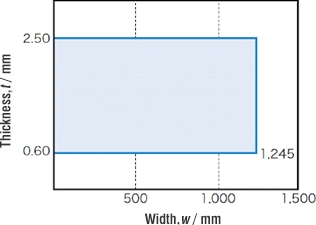

Available Size Range
- *Please contact us for details
Product Form
Strip
