- Al/SUS clad is lighter than stainless steel.

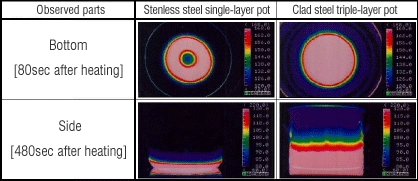

- Al/SUS clad has more excllent thermal conductivity than stennless steel.
Other, bicycle parts, printer parts, pedals for automobiles, watch exterior materials etc.
Chemical composition of stainless steel cladding (mass%)
| Variety |
C |
Si |
Mn |
P |
S |
Cr |
Ni |
Cu |
Nb |
| Stainless steel |
160M |
≦0.025 |
≦1.00 |
≦1.00 |
≦0.040 |
≦0.005 |
16.00 - 19.00 |
- |
0.30 - 0.80 |
0.30 - 0.80 |
| SUS304L |
≦0.030 |
≦1.00 |
≦2.00 |
≦0.045 |
≦0.030 |
18.00 - 20.00 |
9.00 - 13.00 |
- |
- |
Chemical Composition of Aluminum base material (mass%)
| Variety |
Si + Fe |
Cu |
Mn |
Zn |
Al |
| Aluminum |
A1100 |
≦1.00 |
0.05 - 0.20 |
≦0.05 |
≦0.10 |
≧99.00 |
| |
0.2%-P.S. / MPa |
T.S. / MPa |
El. / % |
| 160M / Al |
≧115 |
≧185 |
≧10 |
| 160M / Al / 304L |
≧200 |
≧230 |
≧25 |
| |
Combination |
Full thickness (mm) |
SUS Thickness (mm) |
Thickness (mm) |
| Clad stainless |
Bilayer structure(SUS/Al) |
0.6 - 3.3 |
0.3 - 0.8 |
Standard ≦ 800 |
| Three-layer structure(SUS/Al/SUS) |
1.9 - 2.6 |
0.4 - 0.6 |
