Weathering Steel COR-TENTM
Weathering Steel COR-TENTM has overcome rust, which is the weakest point of steel, in a unique manner, by actually using rust.
Note: COR-TENTM is a registered trademark of United States Steel Corp.
Features
- Weathering Steel COR-TENTM has overcome rust, which is the weakest point of steel, in a unique manner, by actually using rust.
- When COR-TEN with bare specifications is left in the atmosphere, rust occurs first in the same way as ordinary steel, but dense protective rust forms on the surface of the steel due to the action of the alloy element over time, inhibiting the later development of further rust.
Weather resistance
- Since COR-TEN has excellent weather resistance, it can be used without any coating.
- It provides not only the economic effect of a reduction of recoating cost, but an aesthetic effect with sedate color of protective rust.
Coating property
- The coating film has a long life, and the recoating cost can be reduced.
Weldability
- Welding is easy using any method of manual welding or submerged arc welding, etc.
- Spot welding is also possible for thin materials.
Workability
- COR-TEN can be subjected to cold working, hot working, and gas cutting in a similar way as ordinary steel with the same strength level.
Aging of rust

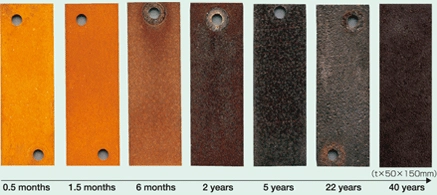

COR-TEN exhibits a yellowish appearance in the initial stage of use, and the color gradually changes to brown. Then, as it sits in its surrounding environment, the color changes to a sedate blackish brown in one to two years. Then, the color changes very little once again, but only to a deep brown.
Examples of use
Unpainted use (Bare)

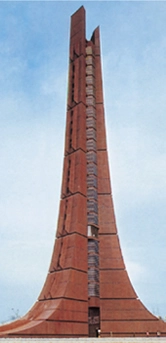

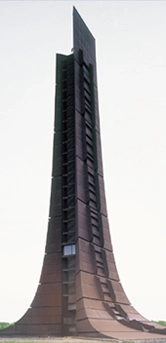

Hokkaido Centennial Memorial Tower (Hokkaido)
Unpainted use (Complementary Rust Stabilization Treatment)

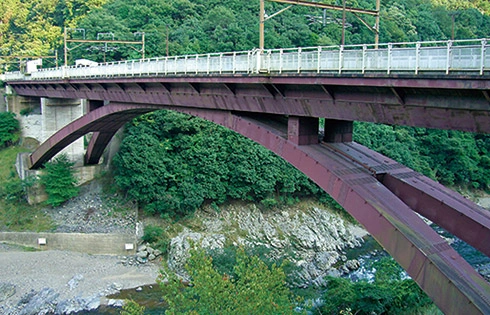

No.2 Hozugawa Bridge (Kyoto)
Painted use

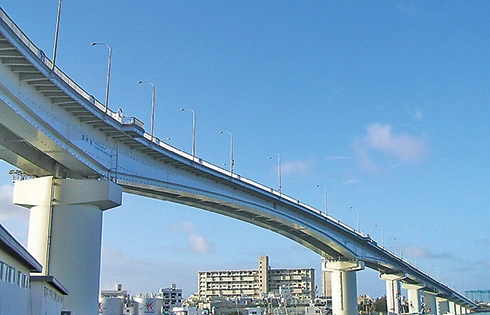

Tomari Bridge (Okinawa)
CORQTM (Cast Metal)
CORQ is a cast metal product that has the features of COR-TEN and is used mainly for floor materials. CORQ is produced and marketed by Okayama Casting Center (Tel: 8-86-277-5588).
※ CORQTM is a registered trade name of Kyoji Takubo and Nippon Steel Corporation.
Iiyama Church of the Resurrection
Exhibition in 2016 at the Tokyo Metropolitan Art Museum
Parts of CORQ
VINCORTM
VINCOR(VINtage COR-ten)is a product to consider the initial color tone with a state of being aged from shipment. VINCOR is sold by Chikumakozai Co., Ltd (Tel: 81-47-354-5721).

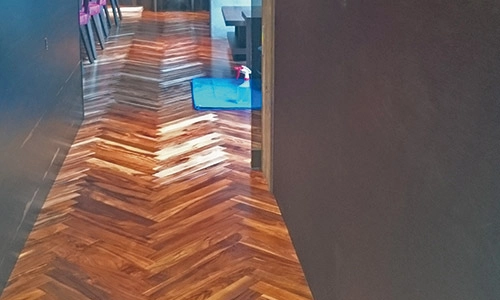

Entrance of a restaurant

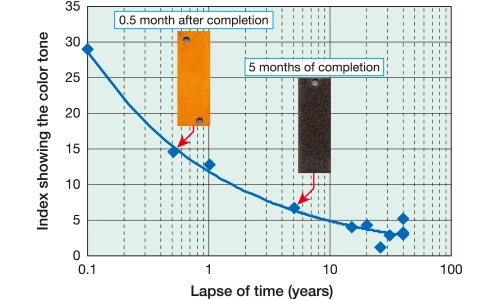

The color tone is quantified and reproduced.
