STEEL PIPE PILES

The steel pipe piles of NIPPON STEEL are used in many fields and have acquired high market acceptance due to their excellent product quality and construction efficiencies that derive from their use.
NIPPON STEEL, drawing a wealth of rolling, fabrication and construction methods in this fields, which have also won for the company a high reputation.
Based on an accumulation of technical expertise, NIPPON STEEL has developed and placed on the market solution proposal using all our available products at a maximum.
NIPPON STEEL will continue its efforts to develop novel products that bring the properties of pipe piles into full play and to respond to more stringent and diversifying user needs in the future.

Products

Steel Pipe Piles / Steel Pipe Sheet Piles

Steel pipe piles and steel pipe sheet piles are widely used in ports/harbors (piers, seawalls, and breakwaters), urban civil engineering (earth-retaining walls and cofferdams), bridges (foundations for steel pipe sheet pile foundations), and other applications, along with widening their applications due to enlargement of the structures sizes, growth of water depth for the structures and increase in construction work at sites where the bearing strata are deep under thick soft ground.

Features
1. Large vertical-bearing capacity

By driving the pipe piles into firm bearing layers, they exhibit a large vertical-bearing capacity.

2. High bending strength

Steel pipe piles with high stiffness and high bending strength enable resistance to considerable horizontal force during earthquakes.

3. Excellent environmental performance

Piles with small section areas realize less earth removal and low vibration and noise.

4. Custom fit for each structure

Various pile lengths, diameters, and thicknesses contribute to economical design.

5. Easy production of longer piles and jointing piles

Longer products can be manufactured, and, as joining piles by welding is also easy, it is possible to apply these to deep water and deep underground structures.

6. Easy jointing with superstructures

Jointing with upper concrete structures is easy, using reinforcing steel bars at the top of piles.

7. Easy handling

Steel that’s light and tough contributes to easy handling and transport.

Percussion method Vibratory hammer method Inner excavation method Steel pipe and soil-cement hybrid pile method Rotating pile method Cast-in-place pile method
Reduction in construction waste soil ◎ ◎ ○ ○ ◎ ×
Effect on groundwater and soil ◎ ◎ ○ ○ ◎ △
Recyclability ◎ ◎ ○ ○ ◎ ×
Low vibration and noise × △ ◎ ◎ ◎ ◎
Durability and earthquake resistance ◎ ◎ ◎ ◎ ◎ ○

◎:optimum, ○:highly suitable, △:suitable, ×:less suitable

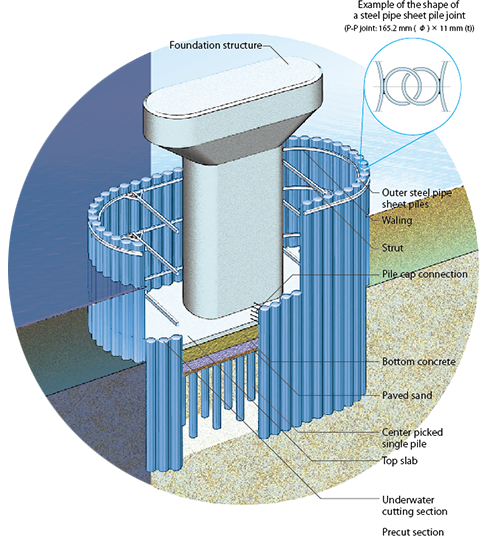

Steel Pipe Sheet Pile Foundation

A steel pipe sheet pile foundation is constructed by combining and installing steel pipe sheet piles in an enclosure shape. This can also be used for temporary cofferdams.

Features
  • Foundations possible to be used both for temporary cofferdams and for permanent foundations can reduce construction periods and costs.
  • A group of steel pipe sheet piles moves together, which can provide high horizontal resistance and vertical bearing capacity, along with reducing the occupied area at the same time.
  • Using the interlocks of high shear strength can further reduce the size of foundations. The foundation can also be used for seismic retrofitting of bridges.

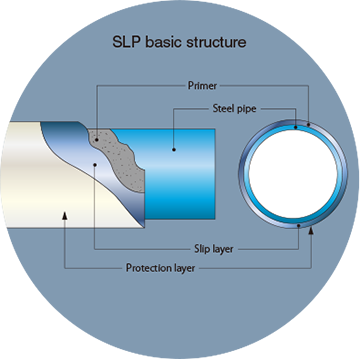

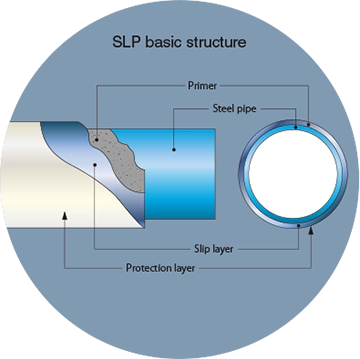

Slip Layer Pipe Pile

Special bitumen materials are applied to the surface of steel pipe piles to significantly reduce the negative friction that is transmitted to the steel pipe piles through the shearing deformation of slip layers.

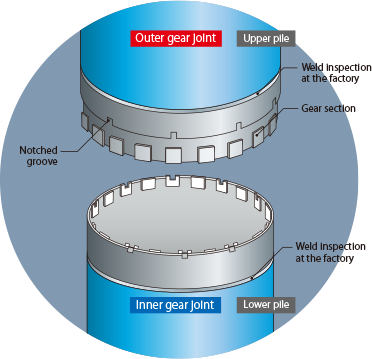

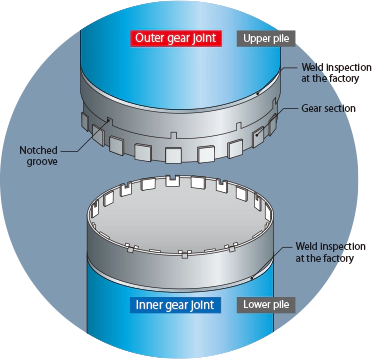

Mechanical Joint

For the vertical joint of piles at construction sites, these joints can reduce the construction period at actual sites compared to that of weld joint, which is commonly used. In addition, products with stable quality are ensured by factory production. They can be constructed regardless of weather.

Catalogs

STEEL PIPE PILES (12.2MB)PDFファイル

  • THE INSPIRING NEW STEEL FOUNDATION SOLUTIONS
  • NIPPON STEEL's Solution Proposal for Steel Foundations
  • Steel Pipe Piles
  • Steel Pipe Sheet Piles
  • Impact hammer method
  • Vibratory hammer method
  • NS ECO-PILE™
  • TNX™ method
  • Gantetsu pile™
  • Gyropress method™
  • Submerged Strut method
  • RS plus™
  • Jacket technology
  • Steel Pipe Sheet Pile Foundation
  • Sat-in Pile Foundation
  • Combined Wall
  • Slip Layer Pipe Pile
  • Mechanical Joint
  • Anticorrosion System
  • Production Process
  • Spiral Welded Steel Pipe
  • Production Range
  • Accessories
  • Junction Types for Steel Pipe Sheet Piles
  • Sectional Properties

NS ECO-PILE™ (3.55MB)PDFファイル

  • Characteristics
    • Overview of NS ECO-PILE
    • Structure of NS ECO-PILE
    • Construction Machinery
  • Construction 　
    • Construction Procedure
    • Example of Machine Layout
    • Special Jigs for NS ECO-PILE
    • Flow of Construction Management
