Die materials
We supply die materials designed to meet our customers' needs.
Characteristics
SD steel as plastic forming die material
- Pure steel made with a special refining method is used.
- Optimal heat treatment is used to produce steel material with little treatment distortion.
- Using fixed forging greater uniformity of the inside and outside structures is achieved.
Fixed forging reduces directionality.
- Carrying out special treatment, surface texturing is improved.
- Using shape forging, we can make materials that are close to the shape of the product.

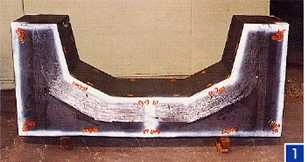

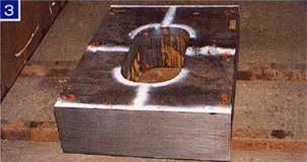

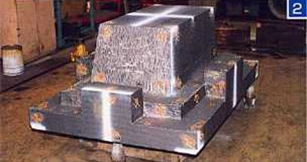

Examples of shaped products
Die materials for hot forging SDH steel / DK steel
- We have the largest crankshaft forging line in Japan. We supply die materials based on the experience we have gained in its operation.
- We select die materials and surface treatments based on the knowledge we have acquired from the results obtained in the operation of our own line.
Explore
Types and applications of SD steel
| Steel types | Standard | Hardness Hs (HRC) | Applications |
|---|---|---|---|
| SD18T | JIS S55C improved | 30±2 (13) | S55C free-cutting steel with high thermal conductivity |
| SD77 | AISI P20 equivalent | 41 - 46(31) | P20 equivalent material with good weldavility, machinability and wear-resistance |
| SD100 | − | 47±2 (34) | wear-resistance |
Mechanical properties of SD steel
| Steel types | Yield point (N/mm2) |
Tensile strength (N/mm2) |
Elongation (%) |
Reduction of area (%) |
Impact value (J/cm2) |
Hardness (Hs) |
|---|---|---|---|---|---|---|
| SD18T | 430 | 720 | 25 | 47 | 38 - 44 | 30 |
| SD61 | 666 | 872 | 22 | 63 | 88 - 196 | 38 |
| SD77 | 859 | 969 | 19 | 49 | 41 - 46 | 42 |
| SD100 | 911 | 1078 | 18 | 55 | 49 - 69 | 47 |
Die materials for hot forging SDH steel / DK steel
| Standard | Steel types | Properties | Applications | |||
|---|---|---|---|---|---|---|
| Wear-resistance | Heat-cracking resistance | Fracture-resistance | Machinability | |||
| SKT4 improved | SDH21 | B | B | B | A | For hammer forging |
| SKD61 improved | SDH3 | B | A | A+ | B | For hot forging |
| DK65 | A | A | B | B | ||
| SDH52 | A | A | B | B | ||
Super [A＋・A・B・C] Inferior
