Metallic roofing products TranTixxii

Roofs

Finish

Transcends time

Seawater-resistant and completely corrosion-resistant, light, strong and environmentally-friendly

Beautiful and versatile

Color × Texture

Offering metallic roofing products
using designing titanium TranTixxii as a material option

Bidan Ichimonji

Expands architects’ creativity and inspires future architecture

Era of design. Not only functionality and performance but also beauty determines value. This trend is spreading from housewares to buildings. Buildings are required to have unconventional, appealing beauty of a new style. Bidan, a flexible roofing material, expands creators’ creativity dramatically.

●Specifications: Bidan-9

ＮＳＴ日本鉄板株式会社×日本製鉄のデザイニングチタン“TranTixxii” [トランティクシー]によるコラボレーション「屋根事業」

[Manufacturable size]

Plate thickness: Steel sheet/copper sheet 0.35 mm to 0.5 mm
　　　　　　　 Stainless steel 0.30 mm to 0.4 mm
　　　　　　　 Aluminum 0.50 mm to 0.7 mm
　　　　　　　 Titanium 0.4 mm

Type	Working width （mm）	Standard length (including joint) （mm）	Area per sheet （m²）	Number of sheets per square meter （pcs.）	Number of sheets per tsubo （pcs.）	Number of sheets per package （pcs.）
Bidan-9	182	2,000	0.364	2.75	9	10

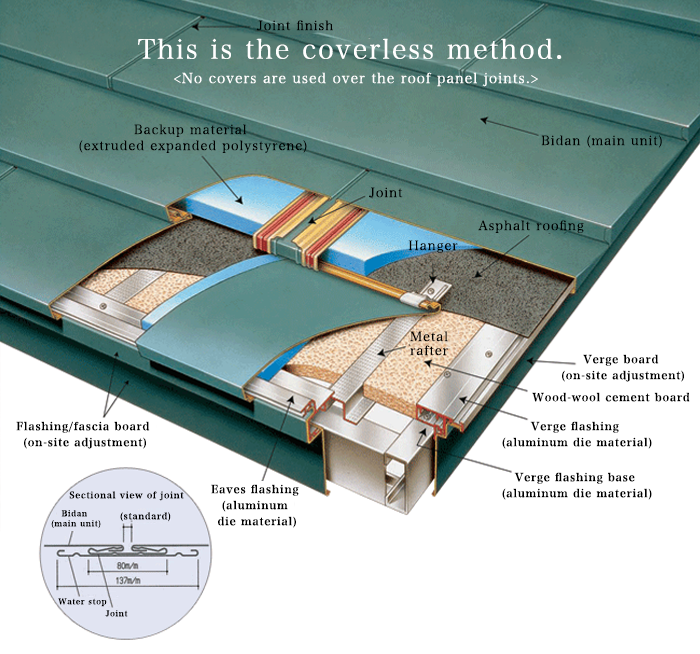

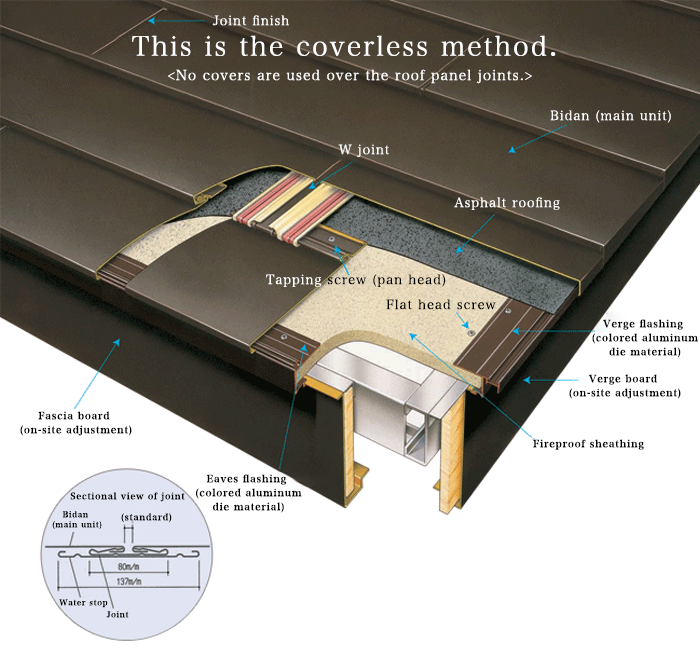

There are two types of joints depending on the roof inclination.
Use an N joint when the roof inclination is 3/10 or more.
Use a W joint when the roof inclination is 1.5/10 or more.
However, even when the inclination is 3/10 or more, if the slope length is 10 meters or more and the roof is shaped so that rainwater easily accumulates (e.g., heavy-snow region, koshibuki roof), use a W-joint. Consult with us if you cannot decide which to use.
Panels with a length of 80 mm to 1,992 mm are available.
Other materials may be available, so please consult with us.

●Specifications: Bidan-15, Bidan-21, Bidan-35

[Manufacturable size]

Plate thickness: Steel sheet/copper sheet 0.4 mm to 0.8 mm
　　　　　　　 Stainless steel 0.4 mm to 0.6 mm
　　　　　　　 Aluminum 0.5 mm to 0.8 mm
　　　　　　　 Titanium 0.4 mm

Type	Working width （mm）	Standard length (including joint) （mm）	Area per sheet （m²）	Number of sheets per square meter （pcs.）	Number of sheets per tsubo （pcs.）	Number of sheets per package （pcs.）
Bidan-15	225	4,000	0.90	1.15	3.70	Standard band:6pcs.
Bidan-21	250	4,000	1.00	1.00	3.30	Standard band:4pcs.
Bidan-21	（280） Special order	4,000	1.12	0.90	2.95	Standard band:4pcs.
Bidan-35	300	4,000	1.20	0.85	2.75	Standard band:4pcs.
Bidan-35	（250） Special order	4,000	1.00	1.00	3.30	Standard band:4pcs.
