Introduction

Nowadays, along with the continuous development of urbanization and economic growth in Vietnam in particular and the world in general, when constructing underground works, irrigation works, foundation platforms, etc. requires permanent structures and measures for construction not only to ensure safety but also economic efficiency.
In order to meet the above requirements, Nippon Steel Corporation has developed a new type SSP – Hat with an effective width of 900 mm, which is the widest hot rolled steel board pile in the world in 2005.

Hat type steel sheet pile - Superior Advantages

Superb drivability

The large sectional area of the Hat-Type sheet pile realizes superior drivability, quick and easy construction.

High structural reliability

No reduction is required in sectional properties to consider the possible lack of shear force transmission at the interlocks, which is true for U-type steel sheet piles.

Excellent cost-effectiveness

The amount of steel per unit wall can be reduced, resulting in improved total cost.

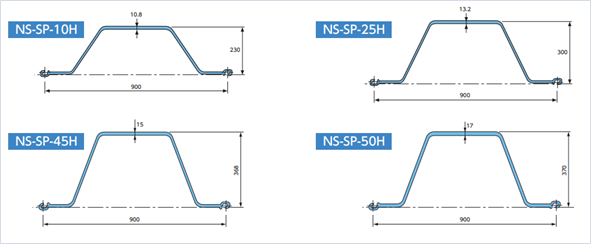

- Hat-type sheet pile has the effective width up to 900mm which includes 4 types;

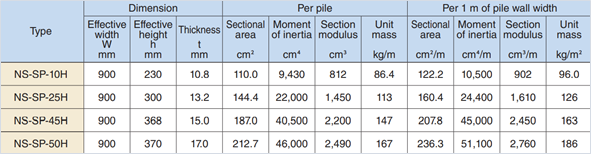

- Sectional properties

INTRODUCTION VIDEO

For more information, please visit our links below;

CATALOGUE:

https://www.nipponsteel.com/product/catalog_download/pdf/K007en.pdf

PRODUCT PAGE LINKS

- Civil Engineering

https://www.nipponsteel.com/vn/en/products/infrastructure/civil-engineering/

- Sheet Piles

https://www.nipponsteel.com/vn/en/products/infrastructure/steel-sheet-piles/
