Corrosion resistance of weld zones

Corrosion resistance of weld zones (as welded)

Generally, the heat affected area on coated steel by arc welding or spot welding reduces corrosion resistance because the coating layer is melted or vaporized. The welded portion on ZAM™ however, is less likely to suffer from red rust than other types of coated steels.

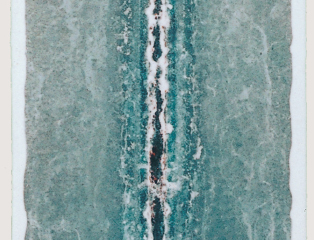

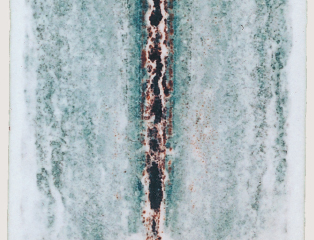

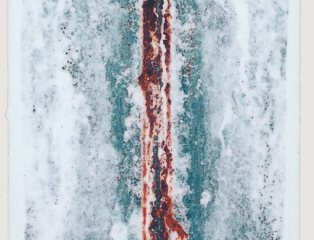

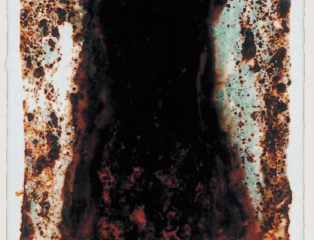

Appearances of arc weld zones after salt spray test

Lapse of time: 2,000h ZAM Thickness: 2.3 mm 90/90 g/m2 — Lapse of time: 2,000h

Lapse of time: 4,000h ZAM Thickness: 2.3 mm 90/90 g/m2 — Lapse of time: 4,000h

ZAM™ Thickness: 2.3 mm 90/90 g/m2

Lapse of time: 2,000h Zn-5% Al alloy coated steel Thickness: 2.3 mm 90/90 g/m2 — Lapse of time: 2,000h

Lapse of time: 4,000h Zn-5% Al alloy coated steel Thickness: 2.3 mm 90/90 g/m2 Appearances of arc weld zones after salt spray test — Lapse of time: 4,000h

Zn-5% Al alloy coated steel Thickness: 2.3 mm 90/90 g/m2

Reference scale: 20mm

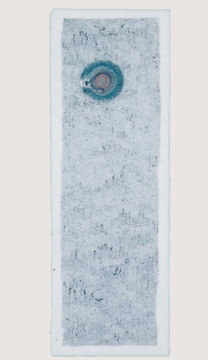

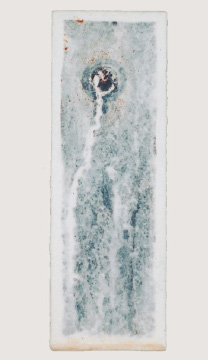

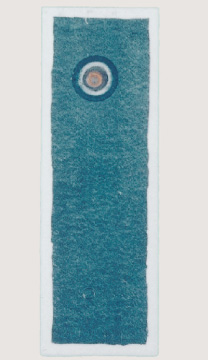

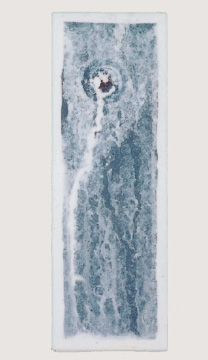

Appearances of spot weld zones after salt spray test

Lapse of time: Before test ZAM Thickness: 2.3 mm 90/90 g/m2 Appearances of spot weld zones after salt spray test — Lapse of time: Before test

Lapse of time: 2,000h ZAM Thickness: 2.3 mm 90/90 g/m2 Appearances of spot weld zones after salt spray test — Lapse of time: 2,000h

Lapse of time: 4,000h ZAM Thickness: 2.3 mm 90/90 g/m2 Appearances of spot weld zones after salt spray test — Lapse of time: 4,000h

ZAM™ Thickness: 2.3 mm 90/90 g/m2

Lapse of time: Before test Zn-5% Al alloy coated steel
Thickness: 2.3 mm 90/90 g/m2 Appearances of spot weld zones after salt spray test

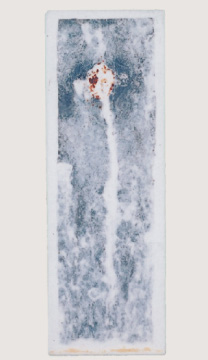

Lapse of time: 2,000h Zn-5% Al alloy coated steel
Thickness: 2.3 mm 90/90 g/m2 Appearances of spot weld zones after salt spray test

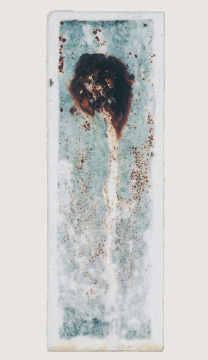

Lapse of time: 4,000h Zn-5% Al alloy coated steel
Thickness: 2.3 mm 90/90 g/m2 Appearances of spot weld zones after salt spray test

Zn-5% Al alloy coated steel Thickness: 2.3 mm 90/90 g/m2

Reference scale: 10mm
