NS ZINKOTE™ (Chromate-free electrogalvanized steel sheet series)
View the detailNippon Steel & Sumikin's NS ZINKOTE™ series is a chromate-free electrogalvanized steel sheet used in products such as flat-screen TVs, copiers and printers.
NS ZINKOTE™ series used in high-performance consumer electronics and OA equipment
[Main finished products that use the NS ZINKOTE™ series
| Application (Example) | Components |
|---|---|
| Flat-screen TVs | Chassis, various parts |
| Copiers, printers | Various parts |
Primary characteristics of NS ZINKOTE™ series
Using a variety of chromate-free specialty coatings, the NS ZINKOTE™ series characteristics can be tailored to suit the application.

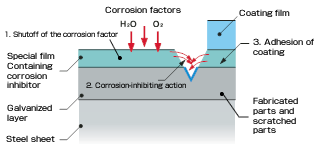

Chromate-free specialty coatings realize
barrier effects, self-healing, and excellent coating adhesion.
The versatile NS ZINKOTE™ series lineup
Nippon Steel & Sumikin's proprietary organic and inorganic coatings provide a lineup of products with a variety of characteristics.

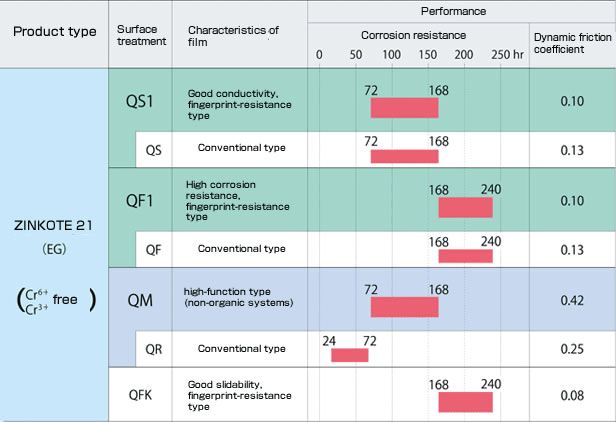

Various products in the NS ZINKOTE™ series (and typical characteristics)
| About the coatings | Required characteristics | Product | |
|---|---|---|---|
| Organic coatings |
|
Focusing on conductivity: | QS1 (good conductivity, smudge-proof) is a standard thin film with well-balanced conductivity and corrosion resistance. |
| Focusing on corrosion resistance/scratch resistance | QF1 (highly corrosion resistant, smudge-proof) is a specialty thick-film coating with very high corrosion resistance. | ||
| Focusing on corrosion resistance/scratch resistance | QFK (slick, smudge-proof) is highly corrosion resistant and slick | ||
| Inorganic coatings |
|
Focusing on conductivity, coating performance and ironing performance | QM (high-performance (inorganic)) thin film is highly conductive, and has sufficient corrosion resistance. |
For details, requests for product catalogs and inquiries, please contact:
Used in these applications
Contact Information
For further product information
Product Quotes, and inquiries without complete information required in inquiry form may not be responded to. Selection of inquiries for reply online is at the sole discretion of NIPPON STEEL. We appreciate your understanding.
NS ZINKOTE™ QS1 Chromate-free electrogalvanized steel sheet
Features formability, electrical conductivity, corrosion resistance, anti-fingerprinting, and eco-friendly properties
NS ZINKOTE™ QS1 With increased functionality over past products
Nippon Steel & Sumitomo Metal NS ZINKOTE™ is a line of chromate-free electrogalvanized steel sheets with corrosion resistance, high formability, high conductivity, and anti-fingerprinting etc. Also includes NS ZINKOTE™ QS1, coated with a special organic thin film.
Major characteristics of this product
- Coated with a special organic thin film, this has excellent electrical conductivity, tribological properties, and anti-fingerprinting properties.

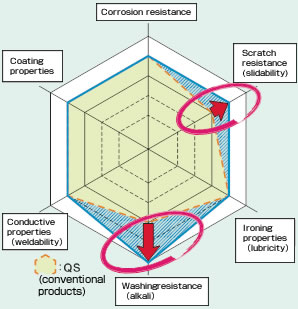

- As shown in the graph at left, this has improved scratchproof properties and washability compared to the previous NS ZINKOTE™ QS product.
Product for engineers developing various AV and OA equipment.
According to the following data, this has the excellent conductivity and corrosion resistance required in various AV and OA devices.

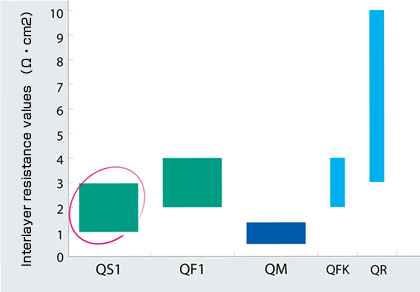

Example data with good electrical conductivity (interlaminar resistance).

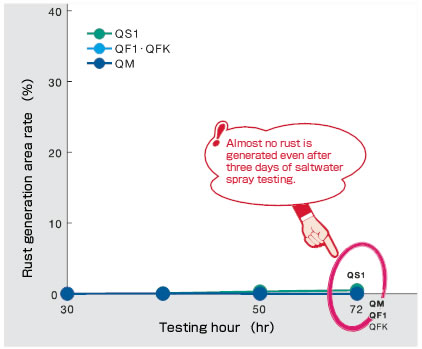

Example of data with good corrosion resistance.
(salt spray test (JIS Z2371), flatness and formability (Erichsen 7mm stretched portion)
Major application examples and reference pictures
Can be widely used as internal components in various AV and OA equipment, such as flat-screen TVs, copiers and printers.
Flat-screen TVs
(back cover)
Copiers
(various components)
Performance data
NS ZINKOTE™ has a varied lineup of products, including QS1, featuring the following main properties.
Main abilities of NS ZINKOTE™
Details, product catalogues, inquiries
Materials close to these products and applications
- NS ZINKOTE™ QF1 Chromate-free electrogalvanized steel sheet
- ZIKOTE® Black Chromate-free electrogalvanized steel sheet
- High forming metallic-type VIEWKOTE™ Pre-coated steel sheet
- High endothermy-type VIEWKOTE™ Pre-coated steel sheet
- [List] NS ZINKOTE™ Series of chromate-free electrogalvanized steel shee t products
- [List] Steel products for home electronics, OA and electronic devices and household equipment
NS ZINKOTE™ QF1 Chromate-free electrogalvanized steel shee
Features formability, corrosion resistance, tribological properties, anti-fingerprinting, and eco-friendly properties
NS ZINKOTE™ QF1 with greater functionality than past products
Nippon Steel & Sumitomo Metal NS ZINKOTE™ is a chromate-free electrogalvanized steel sheet with corrosion resistance, high formability, high electrical conductivity, and anti-fingerprinting properties. NS ZINKOTE™ QF1 has a special thick organic coating.
Major characteristics of this product
- The special thick organic coating provides excellent electrical conductivity, tribological properties and anti-fingerprinting properties.

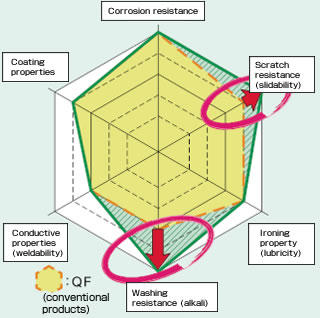

- As shown in the graph at left, scratchproof properties and washability are improved compared with conventional NS ZINKOTE™ QF.
Optimum for parts in various AV and OA equipment that require rigorous corrosion resistance and scratchproof properties.
Since NS ZINKOTE™ QF1 is a thick film type, it has excellent corrosion resistance and scratchproof (tribological) properties.

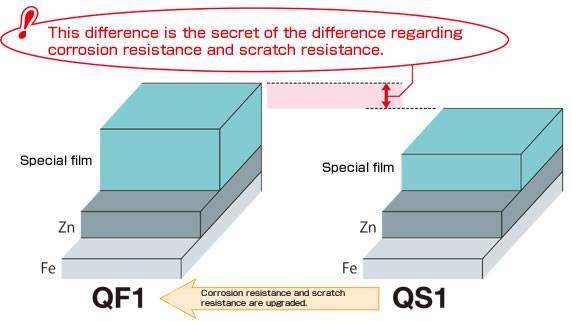

Comparison between QF1 and QS1, which has a thin film of the same organic coating
Example of data with good corrosion resistance.
(salt spray test (JIS Z2371), flatness and formability (Erichsen 7mm stretched portion)
Major application examples and reference pictures
Can be widely used as internal components in various AV and OA equipment, such as flat- screen TVs, copiers and printers.
Flat-screen TVs
(back cover)
Copiers
(various components)
Performance data
NS ZINKOTE™ has a varied lineup of products, beginning with QF1, featuring the following main abilities.
Main abilities of NS ZINKOTE™
Details, product catalogues, inquiries
Materials close to these products and applications
- NS ZINKOTE™ QS1 Chromate-free electrogalvanized steel sheets
- NS ZINKOTE™ Black Chromate-free electrogalvanized steel sheets
- High forming metallic-type VIEWKOTE™Pre-coated steel sheet
- High endothermy-type VIEWKOTE™ Pre-coated steel sheet
- [List] NS ZINKOTE™ Series of chromate-free electrogalvanized steel shee t products
- [List] Steel products for home electronics, OA and electronic devices and household equipment
NS ZINKOTE™ QFK Chromate-free electrogalvanized steel sheet
Features formability, corrosion resistance, tribological properties, anti-fingerprinting, and eco-friendly properties
In addition to excellent corrosion resistance, NS ZINKOTE™ QFK also features excellent tribological properties
Nippon Steel & Sumitomo Metal NS ZINKOTE™ is a chromate-free electrogalvanized steel sheet with corrosion resistance, high formability, high electrical conductivity, and anti-fingerprinting properties. NS ZINKOTE™ QF1 has a special thick organic coating.
Major characteristics of this product

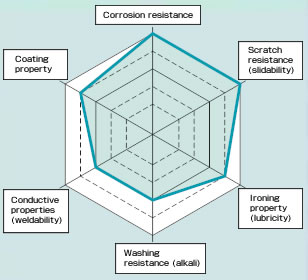

- As shown in the graph at left, scratchproof properties and washability are excellent.
Optimum for parts in various AV and OA equipment that require rigorous corrosion resistance and scratchproof properties.
According to the following data, this has the excellent corrosion resistance and scratchproof properties required in various AV and OA equipment.
Example of data with good corrosion resistance.
(salt spray test (JIS Z2371), flatness and formability (Erichsen 7mm stretched portion)
Example of coefficient of dynamic friction measurement test.
Major application examples and reference pictures
Can be used in cases of various AV and OA equipment.
Flat-screen TVs
(back cover)
Copiers
(various components)
Performance data
NS ZINKOTE™ has a varied lineup of products, beginning with QFK, featuring the following main properties.
Main abilities of NS ZINKOTE™
Details, product catalogues, inquiries
Materials close to these products and applications
- NS ZINKOTE™ QS1 Chromate-free electrogalvanized steel sheet * Organic thin film coated type
- NS ZINKOTE™ QF1 Chromate-free electrogalvanized steel sheet* Organic thick film coated type
- NS ZINKOTE™ QM Chromate-free electrogalvanized steel sheet* Inorganic film coated type
- [List] NS ZINKOTE™ Series of chromate-free electrogalvanized steel shee t products
- [List] Steel products for home electronics, OA and electronic devices and household equipment
NS ZINKOTE™ QM Chromate-free electrogalvanized steel sheet
Features formability, electrical conductivity, corrosion resistance, eco-friendly properties
NS ZINKOTE™ QM uses a special inorganic coating for vastly improved electrical conductivity
Nippon Steel & Sumitomo Metal NS ZINKOTE™ is a chromate-free electrogalvanized steel sheet that has achieved corrosion resistance, high formability, high electrical conductivity, and anti-fingerprinting properties, and NS ZINKOTE™ QM is a type with a special organic thin film coating.
Major characteristics of this product

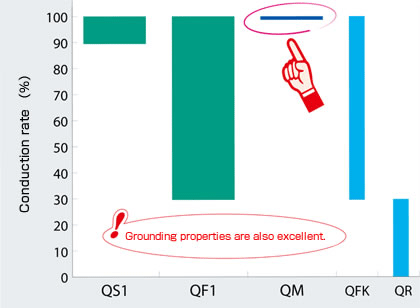

- Coated with a special inorganic thin film. As shown in the graph at left, when compared with organically coated NS ZINKOTE™ QS1, it has superior electrical conductivity, formability, and coating properties.
Optimum for parts with rigorous conductivity demands in various AV and OA equipment.
NS ZINKOTE™ QM has the best electrical conductivity in the NS ZINKOTE™ Series

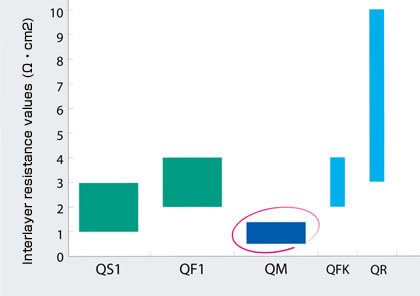

Superb interlaminar resistance (complies with JIS C 2550)
Example of contact resistance (Loresta 4-probe) test
Major application examples and reference pictures
Can be used in the chassis etc. of various AV and OA devices.
Flat-screen TVs
(back cover)
Copiers
(various components)
Performance data
NS ZINKOTE™ has a varied lineup of products, including QM,featuring the following main properties
Main properties of NS ZINKOTE™
Details, product catalogues, inquiries
Materials close to these products and applications
- NS ZINKOTE™ QS1 Chromate-free electrogalvanized steel sheet* Organic thin film coated type
- NS ZINKOTE™ QF1 Chromate-free electrogalvanized steel sheet* Organic thick film coated type
- [List] NS ZINKOTE™ Series of chromate-free electrogalvanized steel shee t products
- [List] Steel products for home electronics, OA and electronic devices and household equipment
Orange peel finish VIEWKOTE™ Pre-coated steel sheet
Features formability, corrosion resistance and aesthetic, eco-friendly, and increased efficiency properties
Orange peel finish VIEWKOTE™ with improved processing yield
Nippon Steel & Sumitomo Metal VIEWKOTE™ pre-coated steel sheets are used in the cases of a variety of consumer electronics, such as refrigerators, washing machines and air conditioner outdoor units. The orange peel finish type that minimizes the visibility of handling marks.
Major characteristics of this product
- Decreases visibility of handling marks, allowing for improved processing yield.
- The ability to omit the coating process during forming helps the customer reduce the number of processes, conserve energy and space, and reduce environmental impact.
Producing round bumps in the coating surface makes this ideal for engineers concerned with improving processing yield.

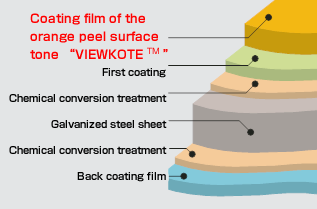

Round bumps are produced in the coating surface of orange peel finish VIEWKOTE™ by including special beads in the paint, and then causing them to melt during the paint baking process. The effect of this is to improve processing yield.

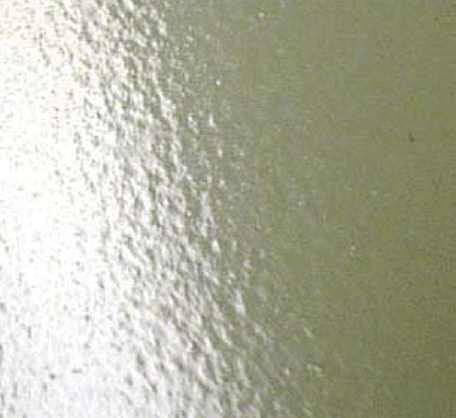

Appearance of orange peel finish VIEWKOTE™
Example of improved processing yield
| When using normal VIEWKOTE™ | When using orange peel finish VIEWKOTE™ | |
|---|---|---|
| Percentage of defects due to marks during handling | >5% | <2%(▼3%) |

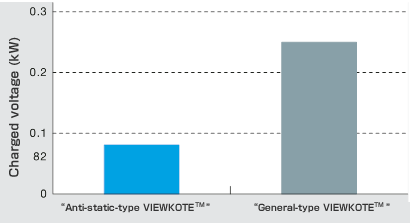

It is also possible to give antistatic properties to orange peel finish VIEWKOT®E.. Of course, VIEWKOTE™steel plates contain absolutely no chromates, making them friendly to the global environment.
Major application examples and reference pictures
These can be used as the side panels on consumer electronics, such as refrigerators and washing machines, or as the external panels of air conditioner outdoor units.
Refrigerators
(Side panels)
Washing machines
(Side panels)
Air conditioner outdoor units
(external panels)
Specification data
There is a wide array of VIEWKOTE™ pre-coated steel sheets, including the Orange peel finish VIEWKOTE™. The main specifications are as follows.
Main VIEWKOTE™ specifications
| Manufactured product type | High-grade pre-coated steel sheets |
|---|---|
| Production capacity | 7,000 T/year |
| Normal sheet size | Thickness 0.3 - 1.2mm (1.6) Width 600 - 1320mm |
| Product weight | 15 T (MAX) |
| Coating process | 2 coats and 2 base coats possible front and back |
| Base steel sheet | Hot-dip galvanized steel sheet, electrogalvanized steel sheet, cold-rolled steel sheet etc. |
Details, product catalogues, inquiries
Materials close to these products and applications

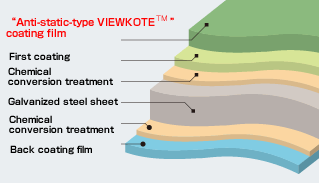

- Anti-static-type VIEWKOTE™ Pre-coated steel sheet
- NSSC 430D ferritic stainless steel
- NSSC PDX ferritic stainless steel
- [List] Steel products for home electronics, OA and electronic devices and household equipment
Graining tone VIEWKOTE™ Pre-coated steel sheet
Features formability, corrosion resistance and aesthetic, eco-friendly, and increased efficiency properties
Enhanced design Graining tone VIEWKOTE™

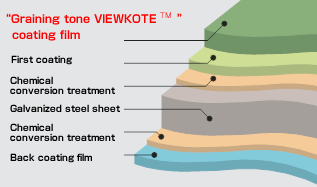

This is the graining tone type of Nippon Steel & Sumitomo Metal VIEWKOTE™ pre-coated steel sheet that has achieved enhanced design aesthetic, and which is used in various exterior applications in the consumer electronics and household fields.
Major characteristics of this product
- Adding large-diameter beads to the coating film surface achieves a higher design aesthetic than our previous pre-coated steel sheet.
- The ability to omit the coating process during forming helps the customer reduce the number of processes, conserve energy and space, and reduce environmental impact.
Combining this with embossing or press-forming further enhances design.
Graining tone VIEWKOTE™ makes it possible to create an appearance with enhanced aesthetics and design aspects, as shown below.

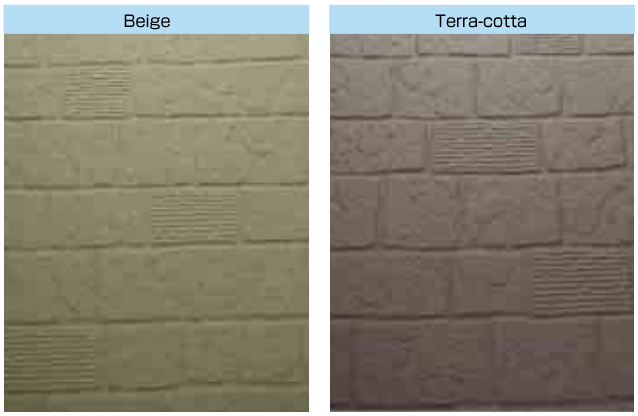

View of prototype metal siding (example)
* Appearance after embossing

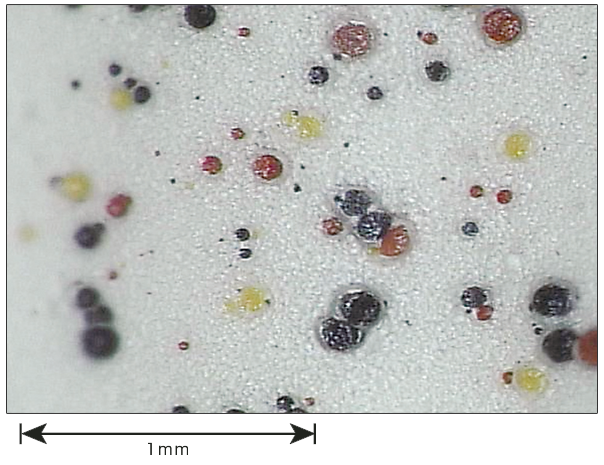

Magnified photo of coating surface (example)
Reference picture of the application example
Can also be used in low-rise residential and high-rise building exteriors, and steel furniture etc.
Low-rise residential
(external walls)
Highrise buildings.
(external walls)
Specification data
There is a wide array of VIEWKOTE™ pre-coated steel sheets, including the graining tone type. The main specifications are as follows.
Main VIEWKOTE™specifications
| Manufactured product type | High-grade pre-coated steel sheets |
|---|---|
| Production capacity | 7,000 T/year |
| Normal sheet size | Thickness 0.3 - 1.2mm (1.6) Width 600 - 1320mm |
| Product weight | 15 T (MAX) |
| Coating process | 2 coats and 2 base coats possible front and back |
| Base steel sheet | Hot-dip galvanized steel sheet, electrogalvanized steel sheet, cold-rolled steel sheet etc. |
Details, product catalogues, inquiries
Materials close to these products and applications
- Wear-resistance Color GL™, a high-class color-coated steel sheet
- NARCOLOR pre-coated stainless steel sheets
- NSSC 220M, a ferritic stainless steel
High forming metallic-type VIEWKOTE™ pre-coated steel sheet
Features formability, corrosion resistance and aesthetic, eco-friendly, and increased efficiency properties
High forming metallic-type VIEWKOTE™ featuring metallic and matte finish appearance
Nippon Steel & Sumitomo Metal VIEWKOTE™ pre-coated steel sheets are used in the outer cases of a variety of consumer electronics, such as refrigerators, washing machines and air conditioner outdoor units. This is the High forming metallic-type that features a metallic appearance.
Major characteristics of this product
- Highly formed applications
- Attractive metallic or matte finish.
- The ability to omit the coating process during forming helps the customer reduce the number of processes, conserve energy and space, and reduce environmental impact.
Ideal for engineers desiring design aesthetics and formability for bending or drawing.

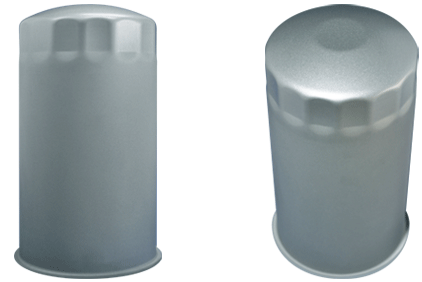

The high formability of high forming metallic-type VIEWKOTE™makes it possible to form an oil filter shape , as shown below.
| Base sheet standard | EGC | Reverse side | VIEWKOTE E Type |
|---|---|---|---|
| Indicated thickness | 0.55mm | SURFACE | Silver metallic (VIEWKOTE™ Type 5) |
| Coating weight symbol | 20/20 |
Additional functionality can also be added by selecting the coating film for the reverse side of the steel sheet.
For example, heat inside the equipment can be dissipated to the outside by selecting a high endothermy-type coating film for the reverse side.
Naturally, VIEWKOTE™steel sheets are completely chromate-free and environmentally-friendly.
Major application examples and reference pictures
It can be used in covers of high-performance AV equipment such as DVD, plasma displays, liquid crystal displays, and TV tuners.
Flat-screen TVs
(back cover)
DVD and HD
(Cover)
Specification data
There is a wide array of VIEWKOTE™ pre-coated steel sheets, including the high forming metallic-type. The main specifications are as follows.
Main VIEWKOTE™specifications
| Manufactured product type | High-grade pre-coated steel sheets |
|---|---|
| Production capacity | 7,000 T/year |
| Normal sheet size | Thickness 0.3 - 1.2mm (1.6) Width 600 - 1320mm |
| Product weight | 15 T (MAX) |
| Coating process | 2 coats and 2 base coats possible front and back |
| Base steel sheet | Hot-dip galvanized steel sheet, electrogalvanized steel sheet, cold-rolled steel sheet etc. |
Details, product catalogues, inquiries
Materials close to these products and applications
- High endothermy-type VIEWKOTE™ pre-coated steel sheet
- NS ZINKOTE™ black chromate-free electrogalvanized steel sheet
- NS ZINKOTE™ QS1 chromate-free electrogalvanized steel sheets* Thin film coated type
- NS ZINKOTE™ QF1 chromate-free electrogalvanized steel sheets* Thick film coated type
- [List] Steel products for home electronics, OA and electronic devices and household equipment
High endothermy-type VIEWKOTE™ Pre-coated steel sheet
Features formability, corrosion resistance and aesthetic, endothermic, eco-friendly, and efficiency properties
High endothermy-type VIEWKOTE™ reduces temperatures inside equipment
Exhibiting both endothermic and exothermic effects, this is a is a high endothermy-type of Nippon Steel & Sumitomo Metal VIEWKOTE™ pre-coated sheet steel used in the outer cases of a variety of consumer electronics such as refrigerators, washing machines, and air conditioner outdoor units.
Major characteristics of this product

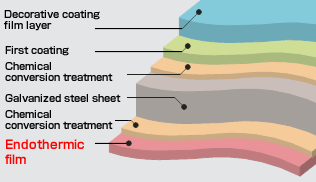

- An endothermic film applied to the heat source side (back of steel sheet) provides a heat-absorption and dissipation effect.
- The ability to omit the coating process during forming helps the customer reduce the number of processes, conserve energy and space, and reduce environmental impact.
Ideal for engineers plagued by heat dissipation in consumer electronics, OA equipment, and electronic devices.
High endothermy-type VIEWKOTE™has high endothermy, making it possible to reduce temperatures inside the equipment compared with normal VIEWKOTE™.

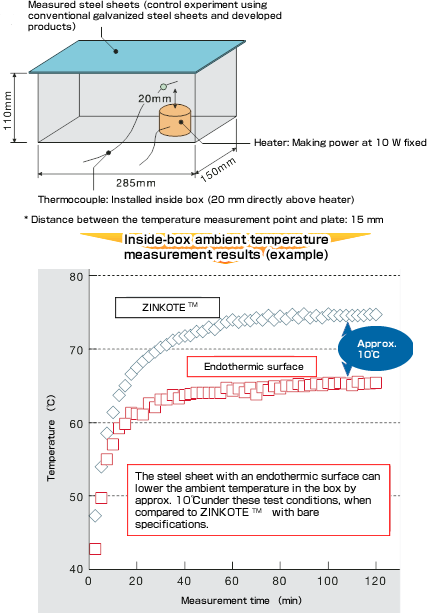

Temperature measurement and testing compared normal VIEWKOTE™ and high endothermy-type VIEWKOTE™.
Furthermore, the endothermic coating film on the back of the steel sheet in the high endothermy-type VIEWKOTE™ was designed for absorption in the high-thermal energy infrared zone. It also maintained electrical conductivity of less than 0.1Ω when measured by the Loresta method.
Major application examples and reference pictures
It can be used in covers of high-performance AV equipment such as DVD, plasma displays, liquid crystal displays, and TV tuners.
Flat-screen TVs
(back cover)
DVD and HD
(Cover)
Specification data
There is a wide array of VIEWKOTE™ pre-coated steel sheets, including the high endothermy-type. Main specifications are as follows.
Main VIEWKOTE™ specifications
| Manufactured product type | High-grade pre-coated steel sheets |
|---|---|
| Production capacity | 7,000 T/year |
| Normal sheet size | Thickness 0.3 - 1.2mm (1.6) Width 600 - 1320mm |
| Product weight | 15 T (MAX) |
| Coating process | 2 coats and 2 base coats possible front and back |
| Base steel sheet | Hot-dip galvanized steel sheet, electrogalvanized steel sheet, cold-rolled steel sheet etc. |
Details, product catalogues, inquiries
Materials close to these products and applications
- High forming metallic-type VIEWKOTE™ Pre-coated steel sheets
- NS ZINKOTE™ Black Chromate-free electrogalvanized steel sheet
- NS ZINKOTE™ QS1 Chromate-free electrogalvanized steel sheet* Thin film coated type
- NS ZINKOTE™ QF1 Chromate-free electrogalvanized steel sheet* Thick film coated type
- [List] Steel products for home electronics, OA and electronic devices and household equipment
High reflectance type VIEWKOTE™ Pre-coated steel sheet
Features formability, corrosion resistance and aesthetic, reflective, eco-friendly, and efficiency properties
High reflectance-type VIEWKOTE™ boasts highly diffuse reflectance of 92 - 98%

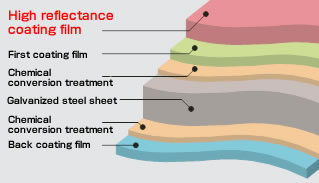

Boasting highly diffuse reflectance, this is a high reflectance type of Nippon Steel & Sumitomo Metal VIEWKOTE™ pre-coated sheet steel used in the outer cases of a variety of consumer electronics, such as refrigerators, washing machines, and outdoor air conditioner units.
Major characteristics of this product
- Boasts highly diffuse reflectance of 92 - 98%.
- The ability to omit the coating process during forming helps the customer reduce the number of processes, conserve energy and space, and reduce environmental impact.
Ideal for engineers wanting to extract the maximum brightness from lighting.

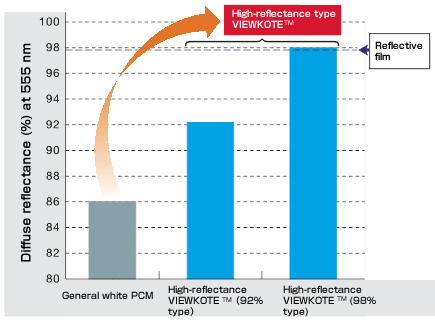

High reflectance-type VIEWKOTE™improves maximum diffuse reflectance by over 10% as shown below.
Diffuse reflectance measurement (example)
Furthermore, the reflectance can be adjusted to 92 - 98% according to customer order.
In addition to draw molding being possible, the type of coating film on the back side can be selected for good conductivity or endothermy, and can also be made functional for electromagnetic shielding, electrical grounding, or heat dissipation etc.
Coating film characteristics (example)
| Reflectance | Diffuse reflectance, wavelength 555nm, Shimadzu Spectrophotometer UV-3100PC |
92 to 98% |
|---|---|---|
| Workability | Cylindrical drawing: Draw ratio=2.0, punch die shoulder R=3mm | No cracking |
| Corrosion Resistance | Saltwater exposure, 8h spray + 16 h rest/cycle 3 cycles | No abnormalities in appearance |
| Acid resistance | 5% HCl drip: Room temperature, 24 hours | No abnormalities in appearance |
| Alkali resistance | 5% NaOH drip: Room temperature, 24 hours | No abnormalities in appearance |
| heat resistance | 70, 240 hours | No abnormalities in appearance |
Major application examples and reference pictures
Can be used added to the reflector in lighting fixtures or in liquid crystal components.
Lighting fixtures
(Reflector)
Flat-screen TVs
(various components)
Specification data
There is a wide array of VIEWKOTE™ pre-coated steel sheets, including the high reflectance-type. The main specifications are as follows.
Main VIEWKOTE™ specifications
| Manufactured product type | High-grade pre-coated steel sheets |
|---|---|
| Production capacity | 7,000 T/year |
| Normal sheet size | Thickness 0.3 - 1.2mm (1.6) Width 600 - 1320mm |
| Product weight | 15 T (MAX) |
| Coating process | 2 coats and 2 base coats possible front and back |
| Base steel sheet | Hot-dip galvanized steel sheet, electrogalvanized steel sheet, cold-rolled steel sheet etc. |
Details, product catalogues, inquiries
Materials close to these products and applications
- High forming metallic-type VIEWKOTE™ Pre-coated steel sheet
- High endothermy-type VIEWKOTE™ Pre-coated steel sheet
- [List] Steel products for home electronics, OA and electronic devices and household equipment
Anti-static-type VIEWKOTE™ Pre-coated steel sheet
Features: formability, corrosion resistant, aesthetics, anti-static, eco-friendly, increased efficiency
Anti-static-type VIEWKOTE™ effectively controls static electricity
Nippon Steel & Sumitomo Metal VIEWKOTE™ pre-coated steel sheets are used in the outer cases of a variety of consumer electronics, such as refrigerators, washing machines and air conditioner outdoor units, and this is the anti-static-type that effectively controls static electricity.
Major characteristics of this product
- This is effective at controlling the build-up of static electricity produced by friction from conveyor belts or rubber suction cups in fabrication processes.
- The ability to omit the coating process during forming helps the customer reduce the number of processes, conserve energy and space, and reduce environmental impact.
Controls static electricity and prevents dirt build-up!
Anti-static-type VIEWKOTE™minimizes electrostatic voltage, as shown below.
Electrostatic voltage comparison (Example)
※* Test conditions A 50100mm piece of neoprene rubber was placed in direct contact with the coated surface of a 70150mm sample of VIEWKOTE™, and immediately after peeling it off, the electrostatic voltage in the coated surface was measured with a non-contact electrostatic field meter.
Using anti-static type VIEWKOTE™can also have dirt build-up preventing effect.

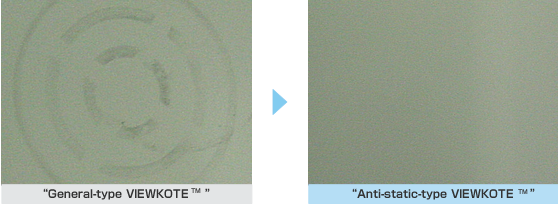

Dirt build-up preventing effect (example) (suction cup marks)
Many of the products that were claimed to have anti-static coatings in the past were based on making it easy for the built up electrostatic charge to be discharged, but in addition to this, anti-static-type VIEWKOTE™has also successfully provided the effect of preventing friction-induced static electricity itself.
In this way, it also prevents dirt build-up in cases where dirt builds up simultaneously with static electricity. This was not readily achieved in previous products.
Major application examples and reference pictures
This can be used for the side panels of refrigerators etc.
Refrigerators
(Side panels)
Specification data
There is a wide array of VIEWKOTE™ pre-coated steel sheet, including the anti-static-type. The main specifications are as follows.
Main VIEWKOTE™specifications
| Manufactured product type | High-grade pre-coated steel sheets |
|---|---|
| Production capacity | 7,000 T/year |
| Normal sheet size | Thickness 0.3 - 1.2mm (1.6) Width 600 - 1320mm |
| Product weight | 15 T (MAX) |
| Coating process | 2 coats and 2 base coats possible front and back |
| Base steel sheet | Hot-dip galvanized steel sheet, electrogalvanized steel sheet, cold-rolled steel sheet etc. |
Details, product catalogues, inquiries
Materials close to these products and applications
- Orange peel finish VIEWKOTE™ Pre-coated steel sheet
- NSSC 430D ferritic stainless steel
- NSSC PDX ferritic stainless steel
- [List] Steel products for home electronics, OA and electronic devices and household equipment
Self-cleaning-type VIEWKOTE™ pre-coated steel sheet
Features: Corrosion resistant, aesthetics, resistant to contamination by rain, eco-friendly, increased efficiency
Self-cleaning-type VIEWKOTE™ with vastly improved resistance to contamination by rain.
Nippon Steel & Sumitomo Metal VIEWKOTE™ pre-coated steel sheets are used in the outer cases of a variety of consumer electronics, such as refrigerators, washing machines and air conditioner outdoor units. This is the High forming metallic-type that features a metallic appearance.
Major characteristics of this product

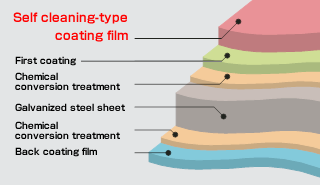

- The hydrophilic coating film vastly improves resistance to contamination by rain.
- The ability to omit the coating process during forming helps the customer reduce the number of processes, conserve energy and space, and reduce environmental impact.
Ideal for engineers developing equipment for installation outdoors.

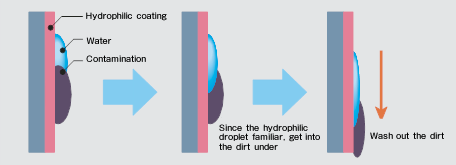

Self-cleaning-type VIEWKOTE™ is hydrophilic, making the coating film compatible with rain, so that dirt is washed away as shown below.
Self-cleaning effect

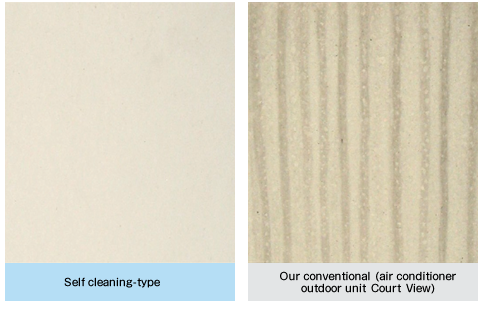

Comparison of resistance to contamination by rain with our past products (flat surface)
* Exposed for 1.5 years in Kimitsu-shi, Chiba (industrial zone)
With optimal base sheet design and combination with hydrophilic coating film, self-cleaning-type VIEWKOTE™has also been applied in roof panel applications for outdoor air conditioner units and has achieved high formability. Formed parts also have excellent resistance to contamination by rain.

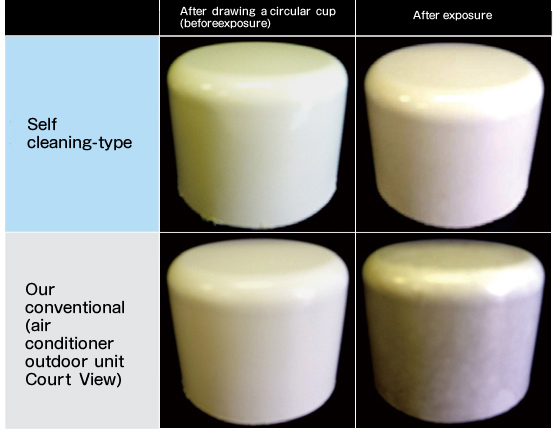

Comparison of resistance to contamination by rain with our past products (formed surface)
* Exposed for one month in Kimitsu-shi, Chiba (industrial zone)
Cylindrical cup drawing conditions: Sheet thickness 0.5mm, base sheet coating weight Z08, base sheet material SGCD2, drawing ratio 2, curvature 5R, presser bar pressure 1t
Major application examples and reference pictures
Can be used as external panels for outdoor air conditioner units and hot water heaters etc. to be used outdoors.
Air conditioners
(external panels for outdoor units)
Water heaters
(external panels)
Specification data
There is a wide array of VIEWKOTE™ pre-coated steel sheets, including the self-cleaning type. The main specifications are as follows.
Main VIEWKOTE™specifications
| Manufactured product type | High-grade pre-coated steel sheets |
|---|---|
| Production capacity | 7,000 T/year |
| Normal sheet size | Thickness 0.3 - 1.2mm (1.6) Width 600 - 1320mm |
| Product weight | 15 T (MAX) |
| Coating process | 2 coats and 2 base coats possible front and back |
| Base steel sheet | Hot-dip galvanized steel sheet, electrogalvanized steel sheet, cold-rolled steel sheet etc. |
Details, product catalogues, inquiries
Materials close to these products and applications
- Orange peel finish VIEWKOTE pre-coated steel sheet®
- NSSC 190 ferritic stainless steel
- NSSC FH11 ferritic stainless steel
- [List] Steel products for home electronics, OA and electronic devices and household equipment
